OpenPnP, SMT Pick and Place Machine

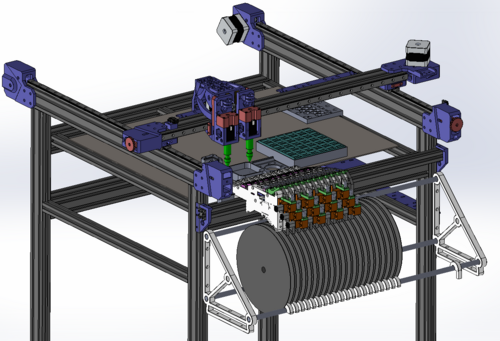

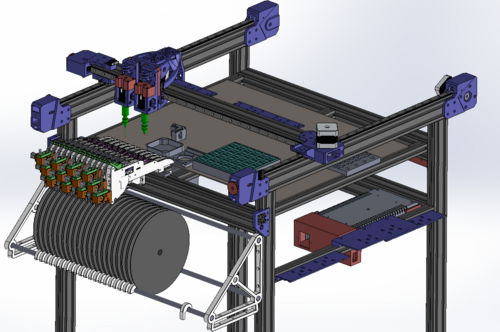

CAD-Design

chosen system/part/software/etc additional links additional notes
Motion-Controller until 10-2018: Ramps 1.4 + Marlin 1.x
upgraded 10-2018: Radds 1.6 + Arduino Due (32bit) + Marlin 2.0-bugfix
*https://groups.google.com/d/msg/openpnp/A5KbRpp9BhE/B0PrObHsEwAJ
*https://groups.google.com/d/msg/openpnp/A5KbRpp9BhE/IR34Yj_7AgAJ
*http://www.instructables.com/id/Configuring-MKS-Sbase-V12-32-bit-Controller-Basics/?ALLSTEPS
supported controller: https://github.com/openpnp/openpnp/wiki/Motion-Controllers
general description how to use marlin

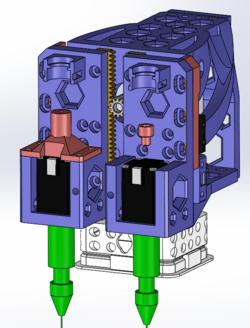

Head custom 3d printed *https://github.com/BETZtechnik/ICEpick--Direct-drive-pick-and-place-head/wiki/CAD-files
*https://groups.google.com/forum/#!topic/openpnp/qdB5XmdrgOA
Nozzles Juki-Nozzles, 2×503, 504, 505, 506, 507 from aliexpress/robotdigg
Nozzle Changer none → manual nozzle change *https://groups.google.com/forum/#!msg/openpnp/9KRSCGut3ig/LJS5u-ByCAAJ
*https://groups.google.com/forum/#!topic/openpnp/NefO3mByBUA%5B1-25%5D
*https://github.com/issus/NEMA8-Juki-Tool-Changer
Uplooking-Cam ELP-USBFHD01M 6mm focal length https://groups.google.com/d/msg/openpnp/MLcwuY0IZnA/G3UFT4L9AwAJ
Downlooking-Cam ELP-USBFHD01M 8mm focal length https://groups.google.com/d/msg/openpnp/MLcwuY0IZnA/G3UFT4L9AwAJ
Automatic Feeder 0816 automatic feeder
Tray for bigger parts custom 3d printed *http://malte-randt.de/strip-feeders-and-modular-tray-for-smd/
manual stripe feeder (expensive parts) manual feeder 3d printed *http://malte-randt.de/strip-feeders-and-modular-tray-for-smd/
