SMT Reel Holder and Storage

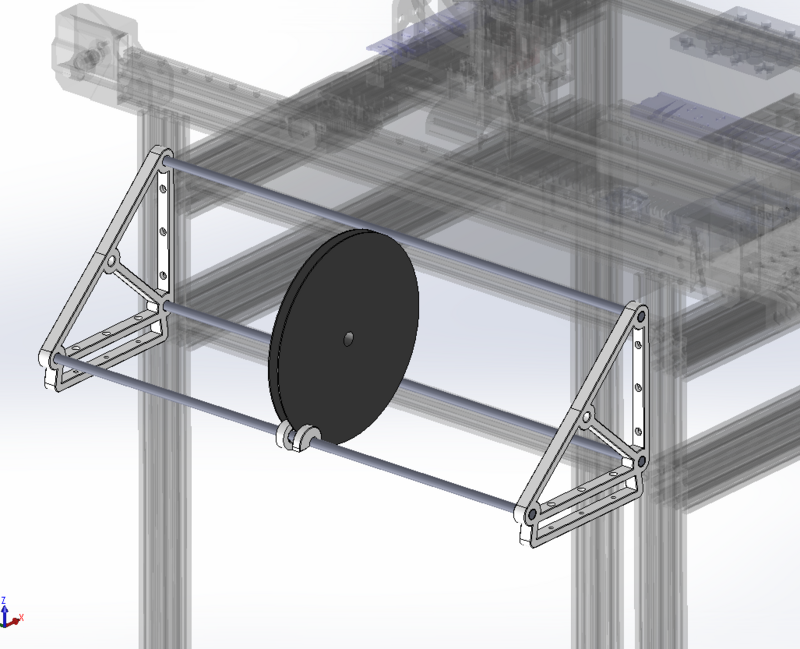

simple smt reel holder and storage mounted to machine (render)

  • 3d printed
  • for 7“ reels only
  • no overhead per reel
  • short clips to keep the reel in position (three clips per reel)
  • long clips with some surface to stick a label on
  • only three 8/10/12mm shafts of desired length needed
  • mount to machine to refill stripe feeder directly (four to six M3 screws)
  • mount to machine to feed the 0816 automatic feeder
  • use standalone to store reels, just put it onto your desk

Download all files for 8mm, 10mm and 12mm shafts in one bundle: It contains a .step-file and stl-files for direct printing.
